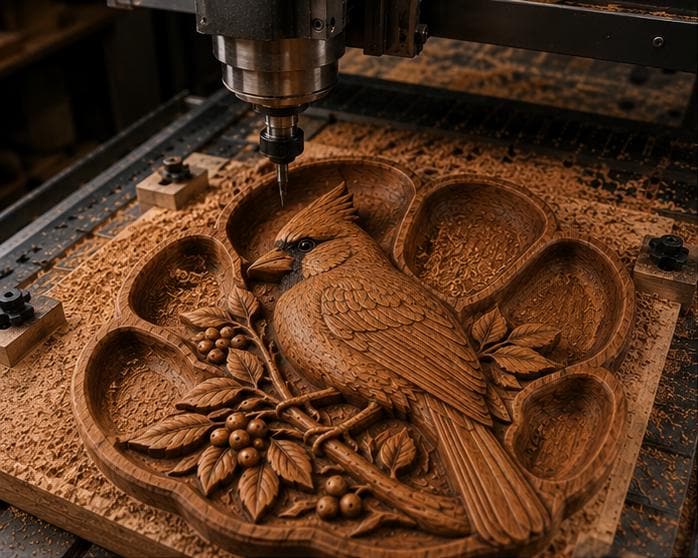

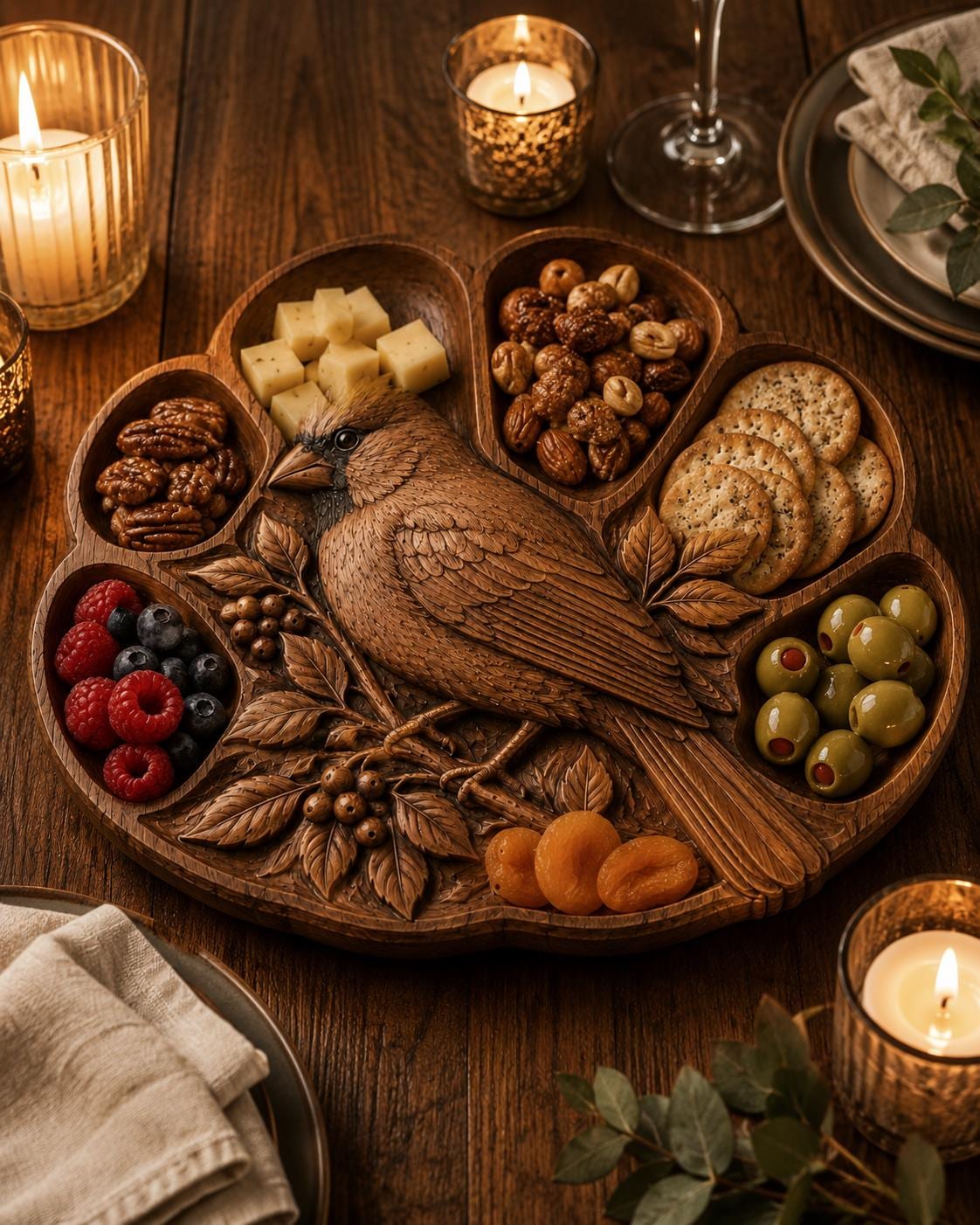

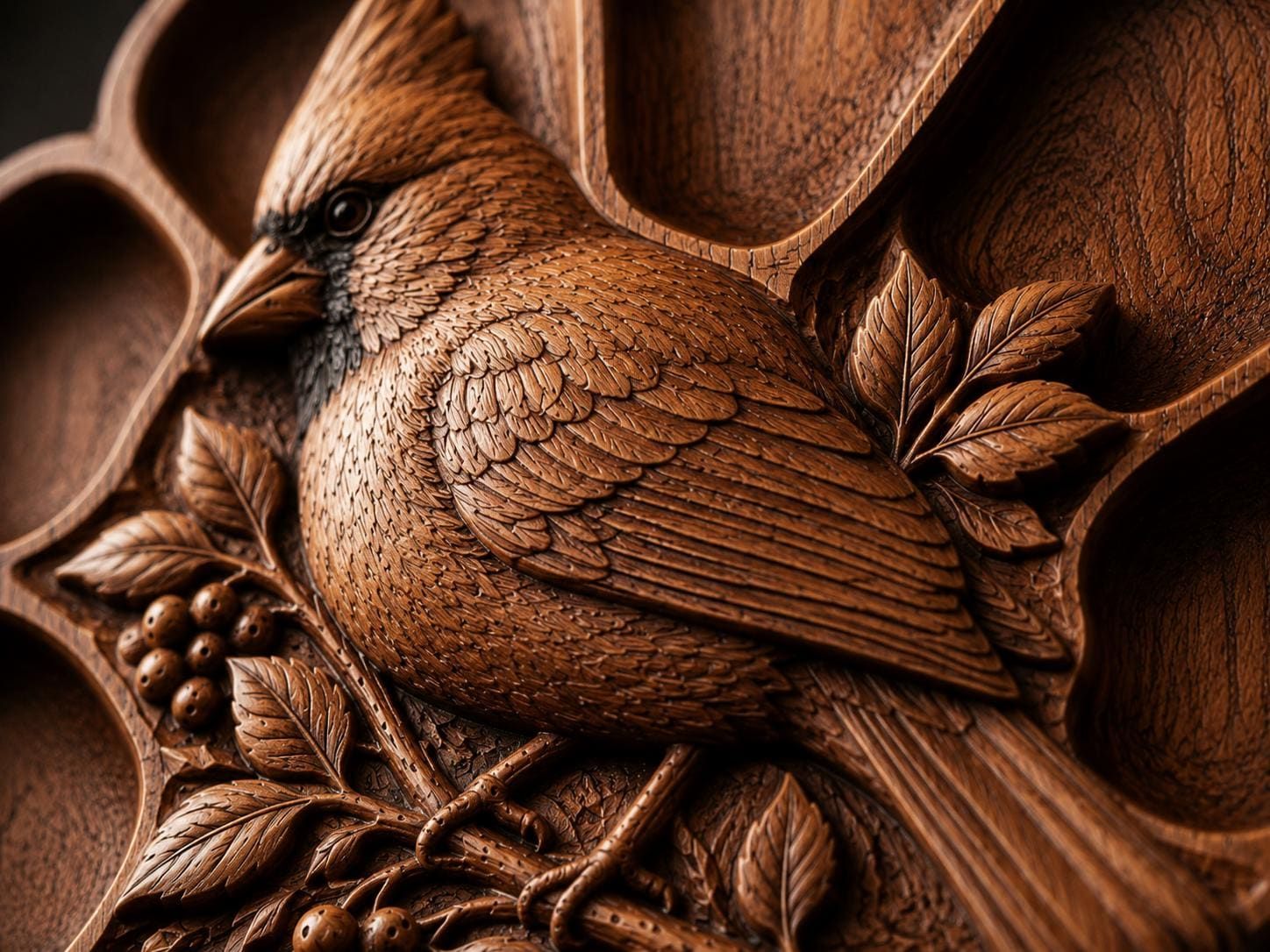

Cardinal Bird Serving Tray STL File for CNC Router
$10.39 here, $12.99 for the same file on Etsy · 5 sold this year · 14 people favourited it
- 📦 Instant digital download (STL file)
- 🛠️ Tested in Aspire, VCarve Pro, Carveco, ArtCAM, Fusion 360
- ♾ Unlimited re-downloads
- ✅ Personal & commercial-use licence: sell what you carve
- Carving size
- 8 × 7 in (203 × 178 mm)
- Relief depth
- 0.93 in (23.7 mm)
- Board thickness
- 1.25 in or thicker
- Rough with
- 1/8 in end mill, 40% stepover
- Finish with
- 1/16 in tapered ball nose, 10% stepover
- Estimated carve time
- about 6 h 5 min (roughing 1 h 55 min, finishing 4 h 15 min)
- Carving size
- 12 × 10.5 in (305 × 268 mm)
- Relief depth
- 1.4 in (35.5 mm)
- Board thickness
- 1.75 in or thicker
- Rough with
- 1/4 in end mill, 40% stepover
- Finish with
- 1/8 in ball nose, 10% stepover
- Estimated carve time
- about 6 h 20 min (roughing 1 h 35 min, finishing 4 h 45 min)
- Carving size
- 18 × 15.8 in (457 × 401 mm)
- Relief depth
- 2.1 in (53.3 mm)
- Board thickness
- 2.5 in or thicker
- Rough with
- 1/4 in end mill, 40% stepover
- Finish with
- 1/8 in ball nose, 10% stepover
- Estimated carve time
- about 16 h 5 min (roughing 5 h 20 min, finishing 10 h 45 min)
- Carving size
- 24 × 21.1 in (610 × 535 mm)
- Relief depth
- 2.8 in (71.1 mm)
- Board thickness
- 3.5 in or thicker
- Rough with
- 1/4 in end mill, 40% stepover
- Finish with
- 1/4 in ball nose (1/8 in for the finest detail, about twice as long), 10% stepover
- Estimated carve time
- about 22 h 10 min (roughing 12 h 40 min, finishing 9 h 30 min)
- Carving size
- 31.1 × 27.3 in (789 × 693 mm)
- Relief depth
- 3.6 in (92 mm)
- Board thickness
- 4 in or thicker
- Rough with
- 1/4 in end mill, 40% stepover
- Finish with
- 1/4 in ball nose (1/8 in for the finest detail, about twice as long), 10% stepover
- Estimated carve time
- about 43 h 30 min (roughing 27 h 30 min, finishing 16 h)
Estimates for a mid-size hobby machine (Shapeoko, X-Carve, Onefinity class). Scaling all three axes together keeps the depth in proportion; for thinner stock scale Z on its own. Hardwoods with fine grain (cherry, hard maple, walnut, basswood) hold this detail best. Check your exact setup in Will it cut, free, nothing uploaded.
How we estimate carve time
Finishing is one raster pass over the whole carving with the ball nose shown, at 10% stepover and half of a 1,800 mm/min (71 in/min) feed. Roughing assumes about 45% of the block above the base is waste, cleared with the end mill shown at 40% stepover and 3 mm per pass (1.5 mm for the 1/8 in end mill) at the full feed. The model leaves out acceleration, tool changes and moves between passes, so a real job usually takes somewhat longer. Times are rounded to 5 minutes.

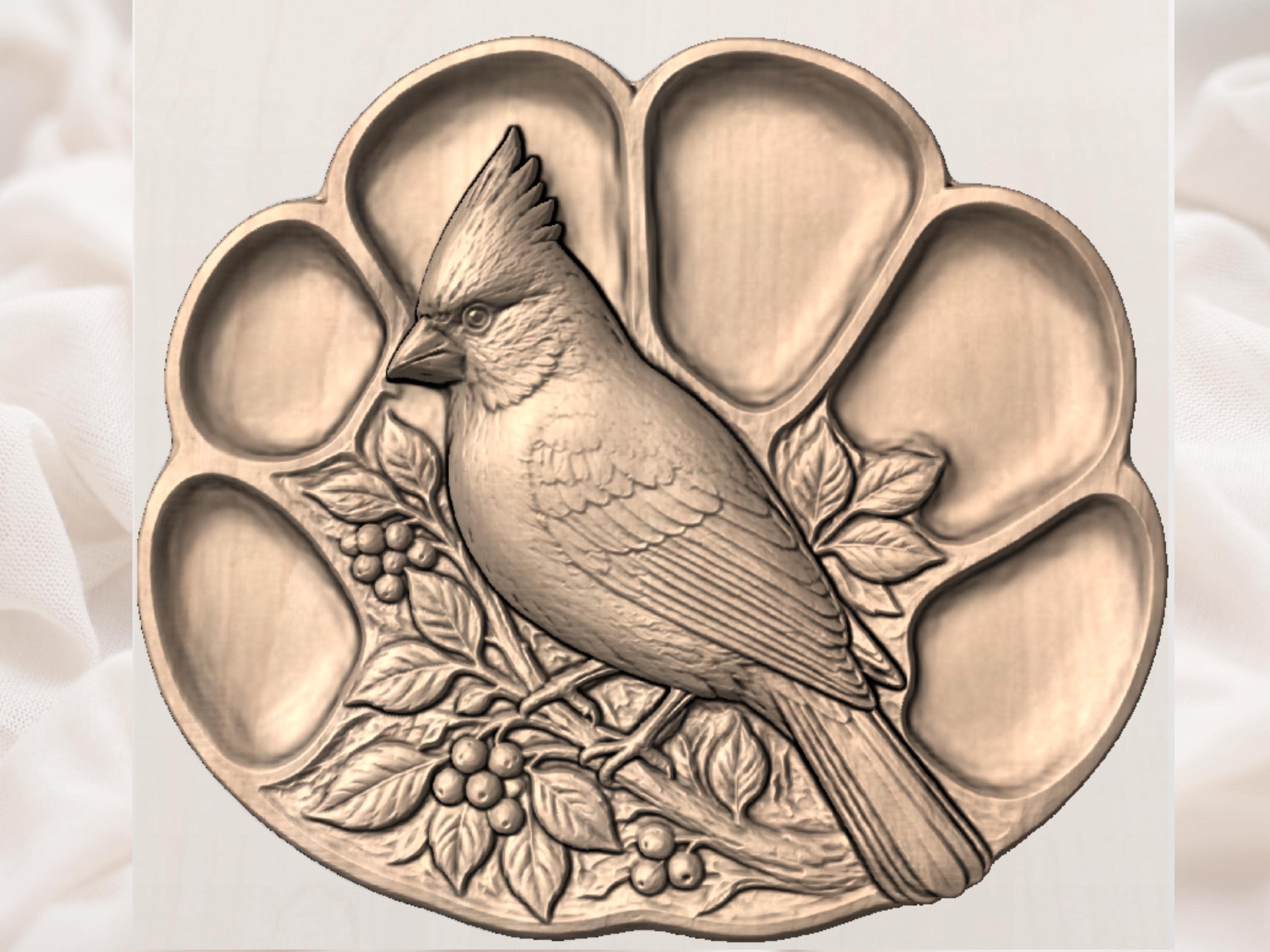

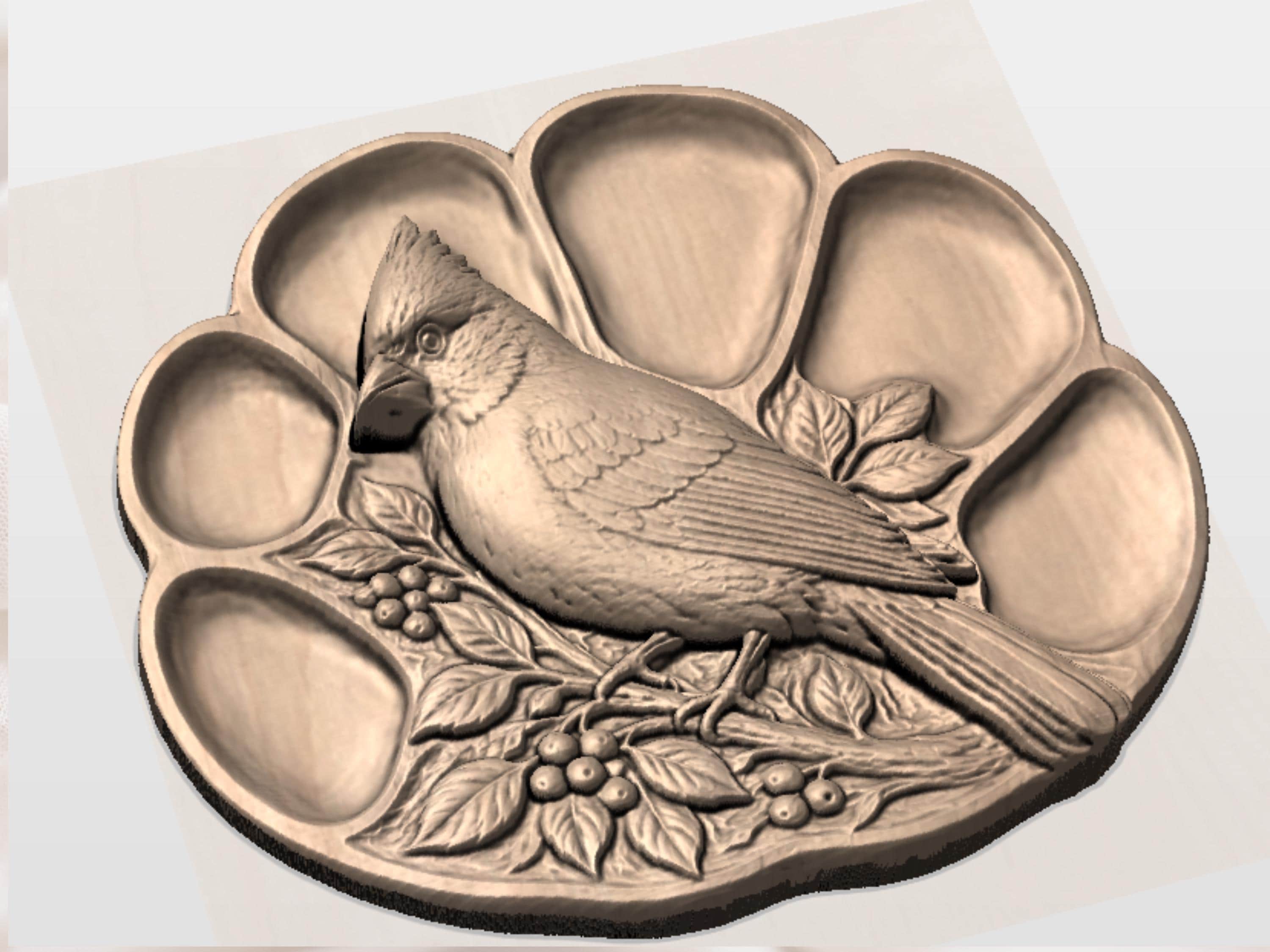

- File format
- STL only decimated high-quality mesh, binary STL
- Model size as supplied
- 789.27 × 692.85 × 92.02 mm
- Shape
- landscape, 1.139:1
- Carve depth
- 11.7% of the width
- Mesh
- 5,903,340 triangles · 281.5 MB
Opens directly in Aspire, VCarve Pro, Carveco, ArtCAM and Fusion 360, and in any slicer for 3D printing. For a laser, the relief is first turned into a greyscale depth image, which our Laser Studio app does from this STL. STL only, no OBJ or DXF: the DXF files used in CNC work hold 2D outlines, not the 3D relief surface. Scale it to whatever panel you are cutting. Scaling all three axes together keeps the depth in proportion; scale Z on its own for a shallower carve. How to open it in your software.
"great file I will be purchasing more"
"Nice CnC STL, carved very well, can't wait to finish it."
About this design
Have a laser too?
Burn this design, or burn onto it
Laser Studio opens this STL with zero conversion and turns them into a ready-to-burn 3D-illusion engrave. Carving on your CNC instead? CNC Match lines up a name, a date or shading on a photo of the finished piece, so the laser burns right onto the carving.
Windows desktop app · $40 once · free updates · it prepares the files, your laser software burns them
FREE, NO CATCH
Not ready to buy? Take five designs free.
Five full bas-relief STL files, the same quality as everything in the shop, sent straight to your inbox. No card, and you can unsubscribe whenever you like.
Complete the set
From the same collection — buy any 2+ designs and save an extra 10% (code SET10, shown in your cart).
Customer reviews & carves
No carves shared yet for this design — be the first! Bought it? Show us how it turned out. 🪵
