Harvest Pumpkins Wheelbarrow Autumn Farmhouse CNC Relief STL
$6.39 here, $7.99 for the same file on Etsy
- π¦ Instant digital download (STL file)
- π οΈ Tested in Aspire, VCarve Pro, Carveco, ArtCAM, Fusion 360
- βΎ Unlimited re-downloads
- β Personal & commercial-use licence: sell what you carve

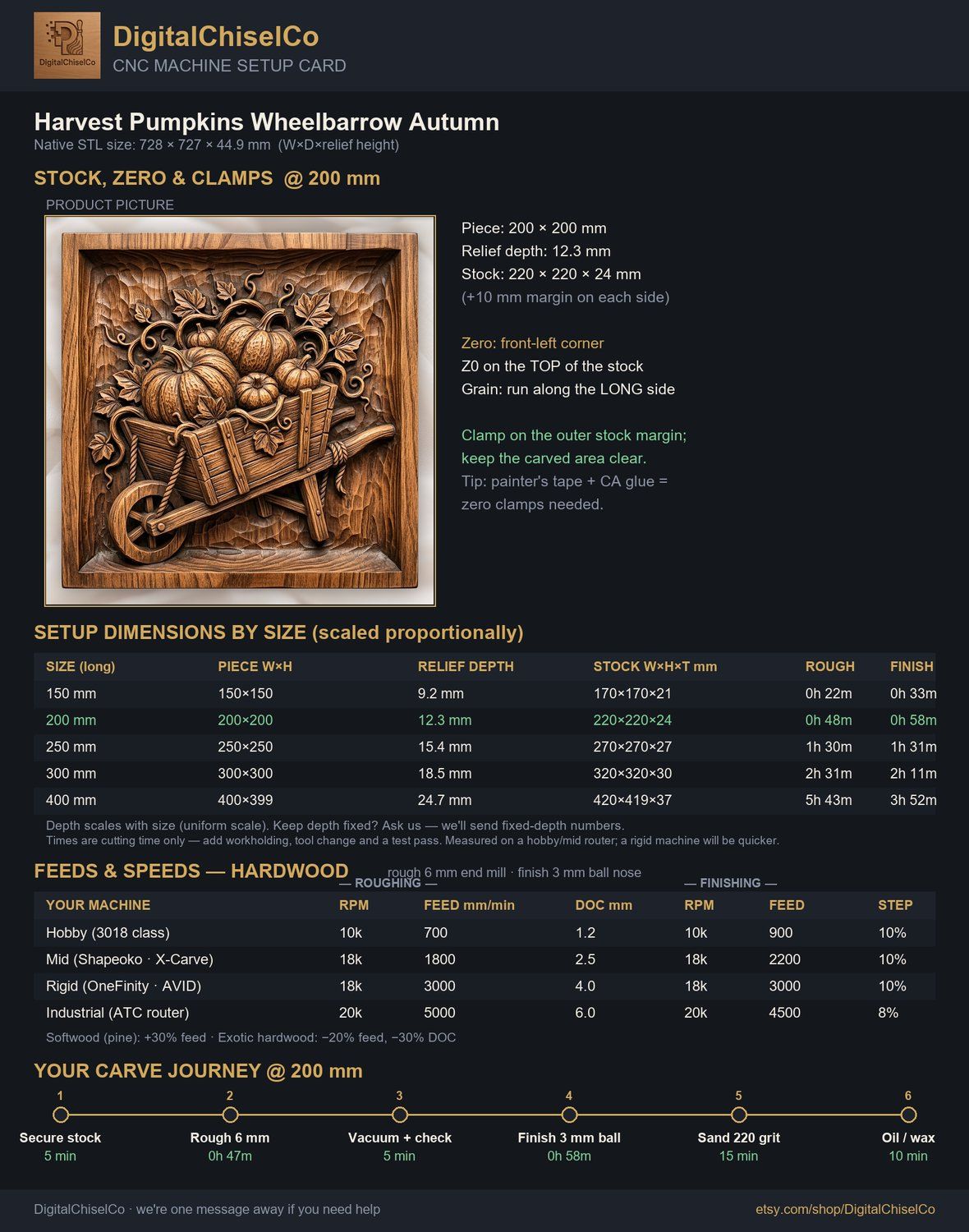

- Carving size
- 8 Γ 8 in (203 Γ 203 mm)
- Relief depth
- 0.49 in (12.5 mm)
- Board thickness
- 0.75 in or thicker
- Rough with
- 1/8 in end mill, 40% stepover
- Finish with
- 1/16 in tapered ball nose, 10% stepover
- Estimated carve time
- about 5 h 55 min (roughing 1 h 10 min, finishing 4 h 50 min)
- Carving size
- 12 Γ 12 in (305 Γ 304 mm)
- Relief depth
- 0.74 in (18.8 mm)
- Board thickness
- 1 in or thicker
- Rough with
- 1/4 in end mill, 40% stepover
- Finish with
- 1/8 in ball nose, 10% stepover
- Estimated carve time
- about 6 h 20 min (roughing 55 min, finishing 5 h 25 min)
- Carving size
- 18 Γ 18 in (457 Γ 456 mm)
- Relief depth
- 1.1 in (28.2 mm)
- Board thickness
- 1.5 in or thicker
- Rough with
- 1/4 in end mill, 40% stepover
- Finish with
- 1/8 in ball nose, 10% stepover
- Estimated carve time
- about 15 h 25 min (roughing 3 h 15 min, finishing 12 h 10 min)
- Carving size
- 24 Γ 24 in (610 Γ 609 mm)
- Relief depth
- 1.5 in (37.6 mm)
- Board thickness
- 1.75 in or thicker
- Rough with
- 1/4 in end mill, 40% stepover
- Finish with
- 1/4 in ball nose (1/8 in for the finest detail, about twice as long), 10% stepover
- Estimated carve time
- about 18 h 25 min (roughing 7 h 35 min, finishing 10 h 50 min)
- Carving size
- 28.7 Γ 28.6 in (728 Γ 727 mm)
- Relief depth
- 1.8 in (44.9 mm)
- Board thickness
- 2.5 in or thicker
- Rough with
- 1/4 in end mill, 40% stepover
- Finish with
- 1/4 in ball nose (1/8 in for the finest detail, about twice as long), 10% stepover
- Estimated carve time
- about 28 h 30 min (roughing 13 h, finishing 15 h 25 min)
Estimates for a mid-size hobby machine (Shapeoko, X-Carve, Onefinity class). Scaling all three axes together keeps the depth in proportion; for thinner stock scale Z on its own. Hardwoods with fine grain (cherry, hard maple, walnut, basswood) hold this detail best. Check your exact setup in Will it cut, free, nothing uploaded.
How we estimate carve time
Finishing is one raster pass over the whole carving with the ball nose shown, at 10% stepover and half of a 1,800 mm/min (71 in/min) feed. Roughing assumes about 45% of the block above the base is waste, cleared with the end mill shown at 40% stepover and 3 mm per pass (1.5 mm for the 1/8 in end mill) at the full feed. The model leaves out acceleration, tool changes and moves between passes, so a real job usually takes somewhat longer. Times are rounded to 5 minutes.
- File format
- STL only decimated high-quality mesh, binary STL

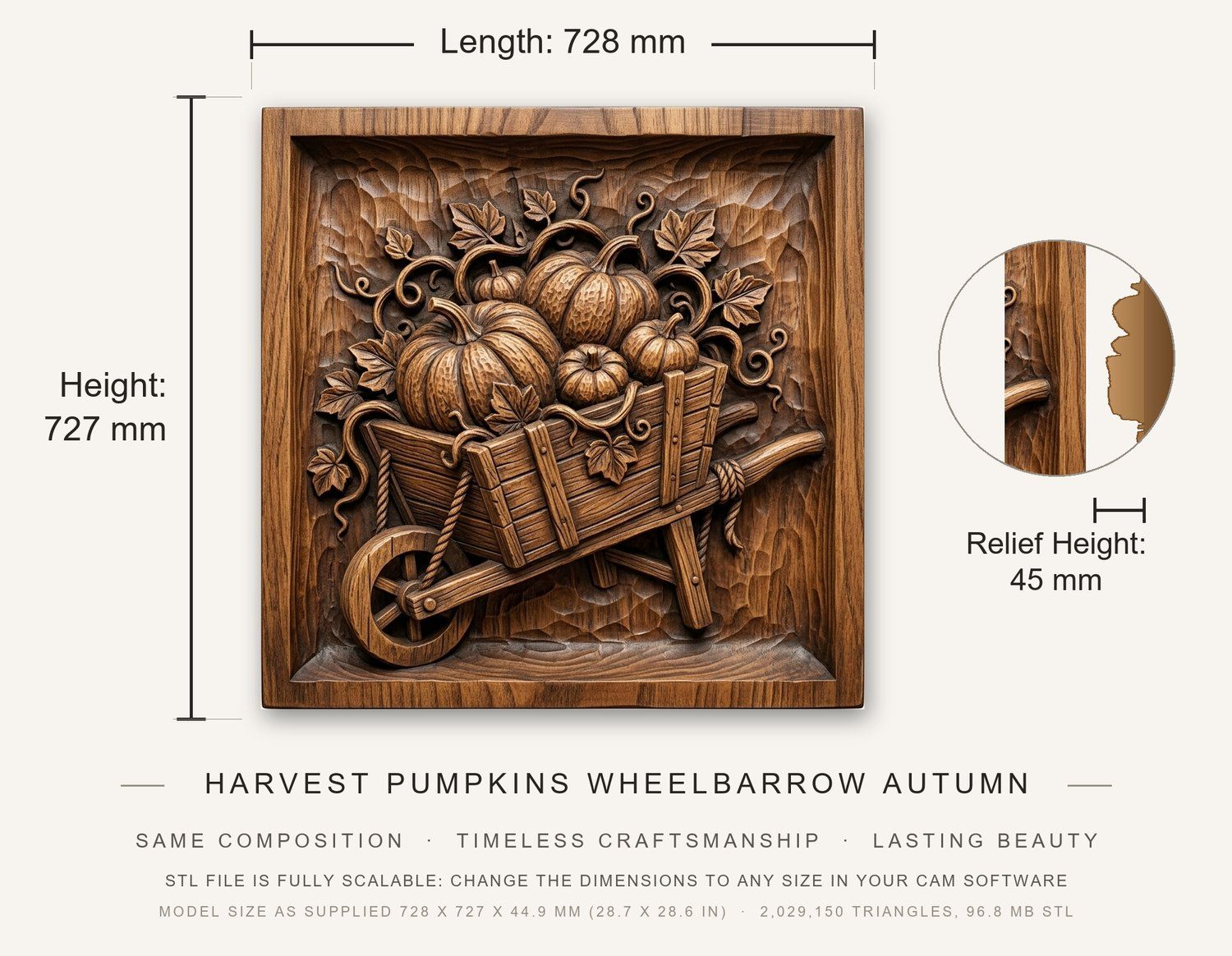

- Model size as supplied
- 728.4 Γ 727.2 Γ 44.91 mm
- Shape
- square, 1.002:1
- Carve depth
- 6.2% of the width
- Mesh
- 2,029,150 triangles Β· 96.8 MB
- Base
- flat and sitting at zero, ready to machine
- Smallest size worth carving
- 200 mm Β· keeps 98% of the fine detail simulated with a 3 mm ball nose
Opens directly in Aspire, VCarve Pro, Carveco, ArtCAM and Fusion 360, and in any slicer for 3D printing. For a laser, the relief is first turned into a greyscale depth image, which our Laser Studio app does from this STL. STL only, no OBJ or DXF: the DXF files used in CNC work hold 2D outlines, not the 3D relief surface. Scale it to whatever panel you are cutting. Scaling all three axes together keeps the depth in proportion; scale Z on its own for a shallower carve. How to open it in your software.
