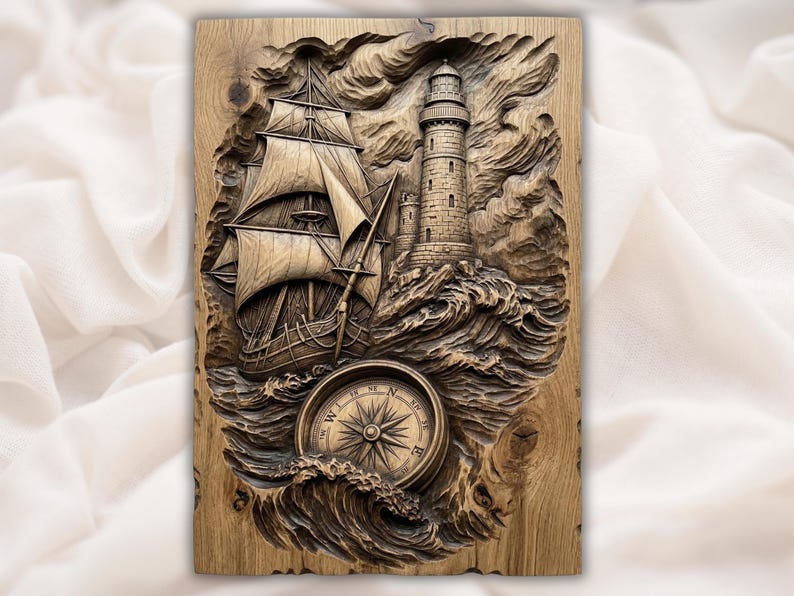

Carved wood relief of a lighthouse, tall sailing ship, crashing ocean waves, and a compass rose
🎬 Watch it in motion
Coastal Nautical

Lighthouse, Tall Ship and Compass Rose Nautical Relief STL

$5.20 $5.78 10% off

$5.20 here, $6.50 for the same file on Etsy · 8 sold this year · 21 people favourited it

Leider sind die Details auf dem Kompass etwas zu schwach, sonst aber Perfekt!
Verified buyer
Express checkout with Apple Pay Google Pay PayPal
View cart →
🛠️ No machine? Get it made by a maker near you
  • 📦 Instant digital download (STL file)
  • 🛠️ Tested in Aspire, VCarve Pro, Carveco, ArtCAM, Fusion 360
  • ♾ Unlimited re-downloads
  • ✅ Personal & commercial-use licence: sell what you carve
📐 Design facts
Carving it at your size
Carving size
5.6 × 8 in (142 × 203 mm)
Relief depth
0.58 in (14.7 mm)
Board thickness
1 in or thicker
Rough with
1/8 in end mill, 40% stepover
Finish with
1/16 in tapered ball nose, 10% stepover
Estimated carve time
about 4 h 20 min (roughing 55 min, finishing 3 h 20 min)
Carving size
8.4 × 12 in (213 × 305 mm)
Relief depth
0.87 in (22.1 mm)
Board thickness
1.25 in or thicker
Rough with
1/4 in end mill, 40% stepover
Finish with
1/8 in ball nose, 10% stepover
Estimated carve time
about 4 h 35 min (roughing 45 min, finishing 3 h 45 min)
Carving size
12.6 × 18 in (319 × 457 mm)
Relief depth
1.3 in (33.2 mm)
Board thickness
1.75 in or thicker
Rough with
1/4 in end mill, 40% stepover
Finish with
1/8 in ball nose, 10% stepover
Estimated carve time
about 11 h 10 min (roughing 2 h 40 min, finishing 8 h 30 min)
Carving size
16.8 × 24 in (426 × 610 mm)
Relief depth
1.7 in (44.2 mm)
Board thickness
2 in or thicker
Rough with
1/4 in end mill, 40% stepover
Finish with
1/4 in ball nose (1/8 in for the finest detail, about twice as long), 10% stepover
Estimated carve time
about 13 h 50 min (roughing 6 h 15 min, finishing 7 h 35 min)

Estimates for a mid-size hobby machine (Shapeoko, X-Carve, Onefinity class). Scaling all three axes together keeps the depth in proportion; for thinner stock scale Z on its own. Hardwoods with fine grain (cherry, hard maple, walnut, basswood) hold this detail best. Check your exact setup in Will it cut, free, nothing uploaded.

How we estimate carve time

Finishing is one raster pass over the whole carving with the ball nose shown, at 10% stepover and half of a 1,800 mm/min (71 in/min) feed. Roughing assumes about 45% of the block above the base is waste, cleared with the end mill shown at 40% stepover and 3 mm per pass (1.5 mm for the 1/8 in end mill) at the full feed. The model leaves out acceleration, tool changes and moves between passes, so a real job usually takes somewhat longer. Times are rounded to 5 minutes.

File format
STL only decimated high-quality mesh, binary STL
Model size as supplied
342 × 489.5 × 35.53 mm
Shape
portrait, 0.699:1
Carve depth
10.4% of the width
Mesh
2,027,150 triangles · 96.7 MB
Base
flat and sitting at zero, ready to machine

Opens directly in Aspire, VCarve Pro, Carveco, ArtCAM and Fusion 360, and in any slicer for 3D printing. For a laser, the relief is first turned into a greyscale depth image, which our Laser Studio app does from this STL. STL only, no OBJ or DXF: the DXF files used in CNC work hold 2D outlines, not the 3D relief surface. Scale it to whatever panel you are cutting. Scaling all three axes together keeps the depth in proportion; scale Z on its own for a shallower carve. How to open it in your software.

759 five-star reviews from carvers
"great file I will be purchasing more"
— Verified buyer
"very nice and easy to setup to carve"
— Verified buyer

About this design

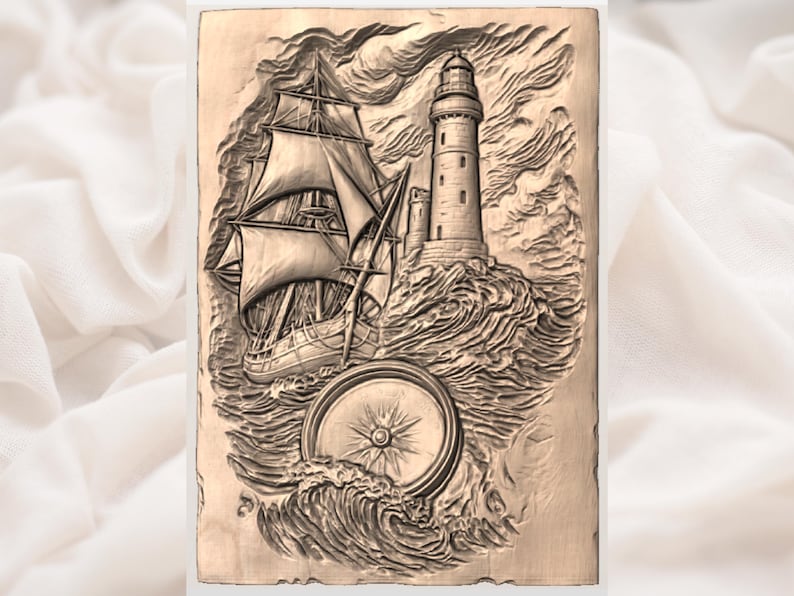

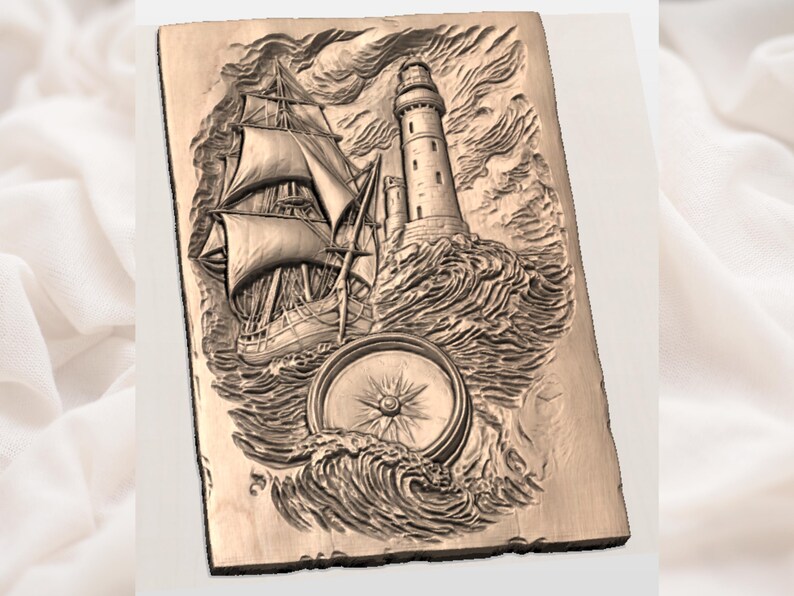

Picture a tall ship heeling into the swell, sails full, while a stone lighthouse holds its ground against the breaking sea. A weathered compass rose rises from the foam in the foreground, pointing the way home. This is the kind of scene that stops people mid-stride when it hangs on a wall, all salt and motion frozen in wood. This is a high-detail bas-relief STL built for clean cutting and real depth. You get the layered drama of crashing waves, the fine masonry on the lighthouse tower, the rigging on the ship, and the crisp ring of compass markings, all sculpted to read beautifully under raking light. The file is ready for Aspire, VCarve Pro, Carveco, and ArtCAM, and it runs well on a CNC router or a 3D printer. For a tidy carve, rough it out with a 6mm end mill at 40 percent stepover, then come back with a 3mm ball nose at 10 percent stepover to pull out the wave crests and the brick detail. Hardwoods like oak, walnut, or maple show the shadows best, though it carves clean in pine too. Use it for coastal wall art, harbor signs, mantel plaques, or a standout gift for anyone who loves the sea. This is an instant digital download, so you can be cutting tonight. Commercial use is included, which means you are free to carve these, sell them at markets, and build a little nautical line of your own. Download it, load your toolpaths, and let the workshop smell like fresh-cut wood and salt air. Add it to your cart and start carving.
Instant download
Emailed the moment you pay
Works with your machine
Aspire, VCarve, Carveco, Fusion 360
Unlimited re-downloads
Yours forever in your account
100% satisfaction
Not carving right? We make it right.
Secure checkout
Encrypted, card details never stored

Have a laser too?

Burn this design, or burn onto it

Laser Studio opens this STL with zero conversion and turns them into a ready-to-burn 3D-illusion engrave. Carving on your CNC instead? CNC Match lines up a name, a date or shading on a photo of the finished piece, so the laser burns right onto the carving.

Windows desktop app · $40 once · free updates · it prepares the files, your laser software burns them

See how it works →

FREE, NO CATCH

Not ready to buy? Take five designs free.

Five full bas-relief STL files, the same quality as everything in the shop, sent straight to your inbox. No card, and you can unsubscribe whenever you like.
